1) Create a New Canvas, add a Dependent Variable and an Independent Variable.

This Blog entry is from the Netica Basics section in Learn Netica.

Like Decision Trees, Netica is quite visual.  Independent and Dependent variables are stamped to a canvas and joined together in the direction of causation, creating a network.  The starting point for creating a Bayesian Network is to create a new canvas.

Creating a new canvas is achieved from the File menu, by clicking File….New….Network:


Creating a new canvas can also be achieved by clicking the icon as follows:

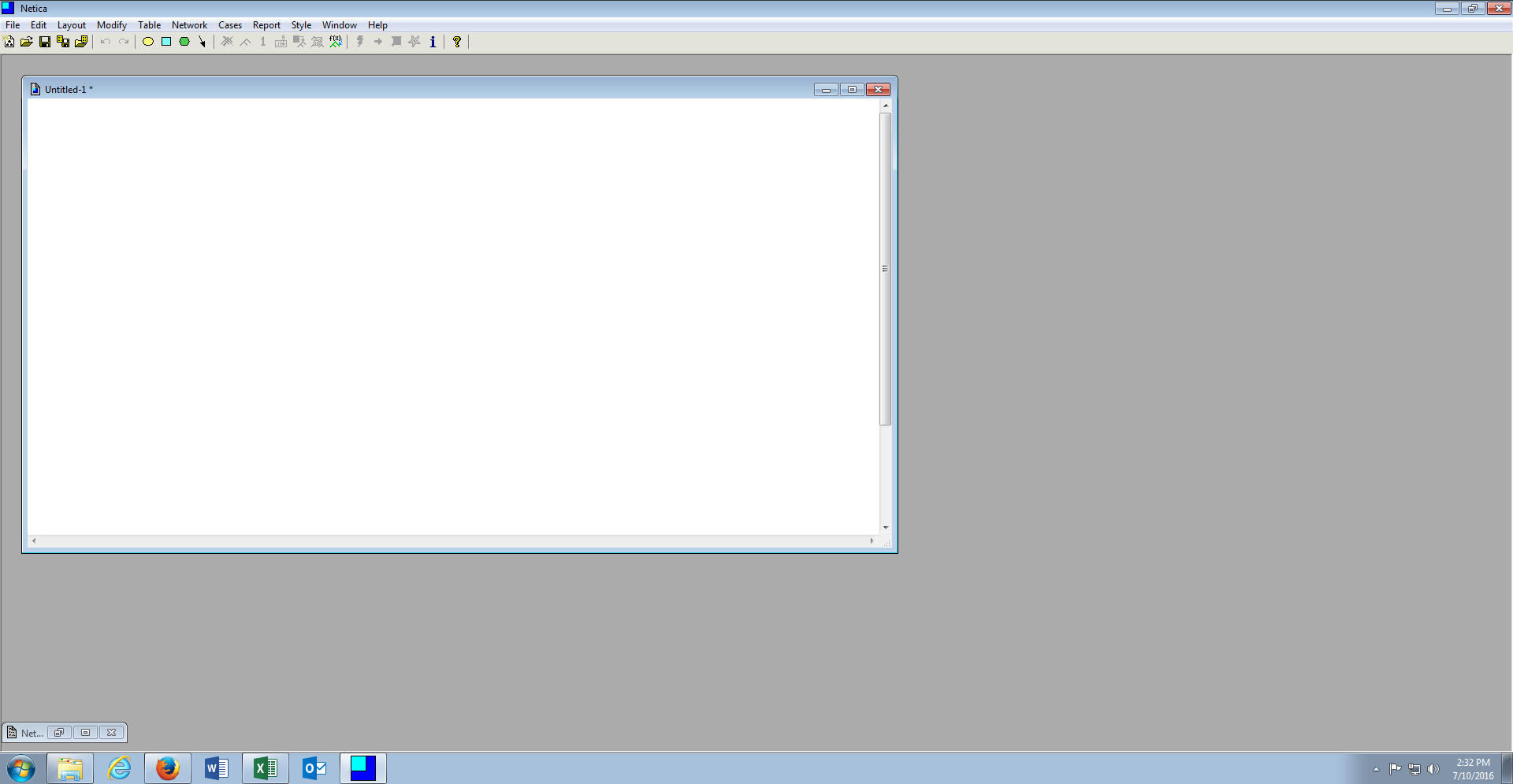

A new canvas will appear:


Variables, hitherto nodes, are stamped to the canvas with one node for each variable to be included in the model.  In this example there will be a single node representing the dependent variable and a single node representing the independent variable.

Right click on the canvas and expand the Modify Menu by right clicking, then clicking New Node, then clicking Nature Node Discrete:

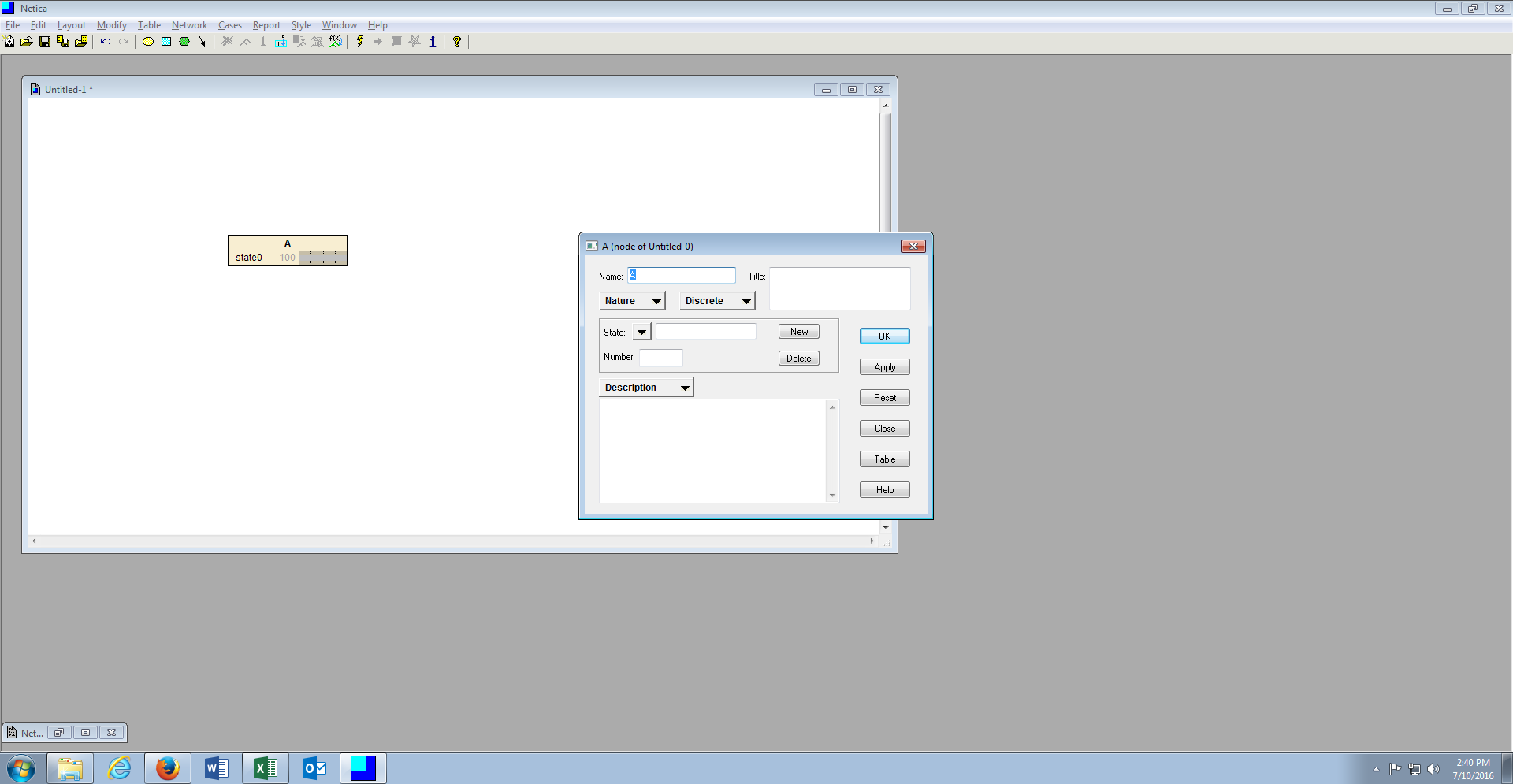

A node will be stamped to the canvas in the location of the right click with the nodes properties box being shown by default:


Name the variable to EXACTLY the same as the dependent variable is named in the dataset, in this example Default, then click OK:


Repeat the process adding a second node to the canvas, this time naming the node as an independent variable with yes \ no states, in this example Count_Bank_Credit_Products_Greater_3:

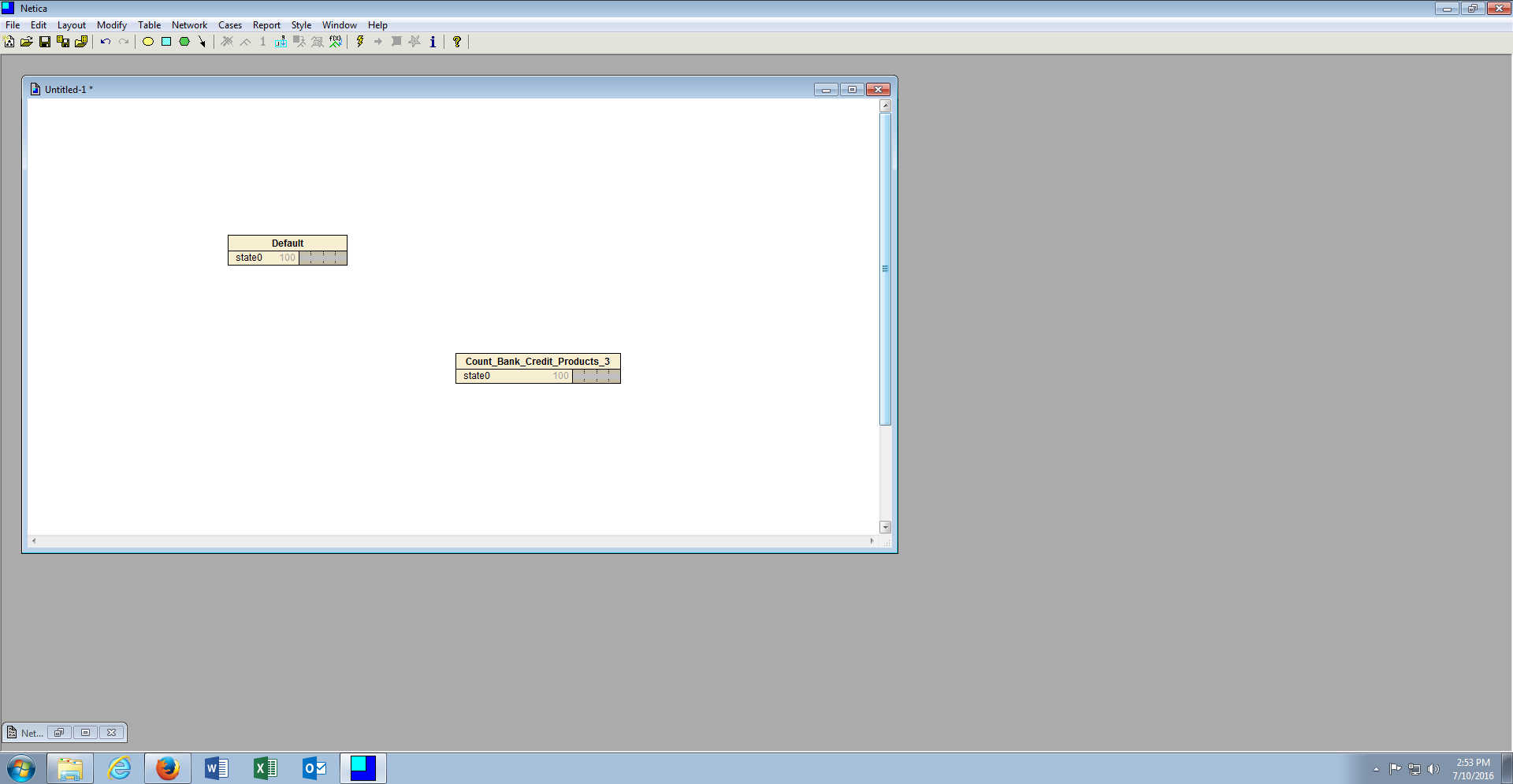

Notice that there are now two nodes stamped to the canvas, one for the dependent variable and one for the independent variable.  Notice also that while each of these nodes has two possible values, referred to as states, the nodes only reflect one default state.

Introduction to Netica Basics

This Blog entry is from the Netica Basics section in Learn Netica.

Norsys Netica is a modelling tool that allows for the creative development of Bayesian networks based on either belief (this would be subjective probability) or data (taking a frequentest approach to probability as available in data).

The software does not install nativity to the operating system, the executable are in the directory:

\Training\Software\Netica 521


Execute the program Netica.exe, which will open the Netica user interface:


The data file that will be used in these procedures is available in Training\Data\CreditRisk and is titled CreditRisk.csv:


The CreditRisk.csv file is extremely large containing an uneven number of default vs. good cases, it could be said that this is a representative sample unlike the logistic regression techniques with rely on an even number of cases in both dispositions.
