1) Create Discrete Vectors with triangle for each model parameter

This Blog entry is from the Monte Carlo Model section in Learn R.

In this example, the result is the simulation of the neural network model that was created in H2O.  It follows that we need to create a dataframe with the same specification the training data set.

For the purposes of our example, we are going to create triangular distributions comprised of the Minimum Value, the Maximum Value and the Mean.  This simulated dataframe will be 100,000 records in length.

This procedure will focus on creating this vector for a single variable, before providing a block of script to achieve this for each variable at the end of the procedure.

Firstly, install the triangle package:


Load the library:

library(triangle)

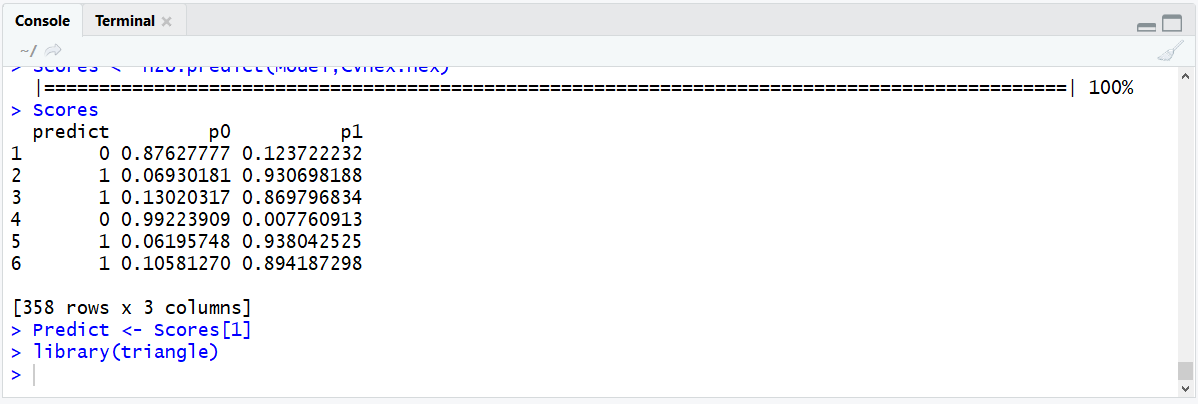

Run the line of script to console:


The rtriangle() function accepts four parameters:

Name

Description

Example

Simulations

This is the size of the return vector and number of simulations to create.

100000

Min

The smallest value to be created in the simulation.

0

Max

The largest value to be created in the simulation.

100

Mean or Mode

The Mean or Mode used to skew the distribution to more closely align to the real data.

10

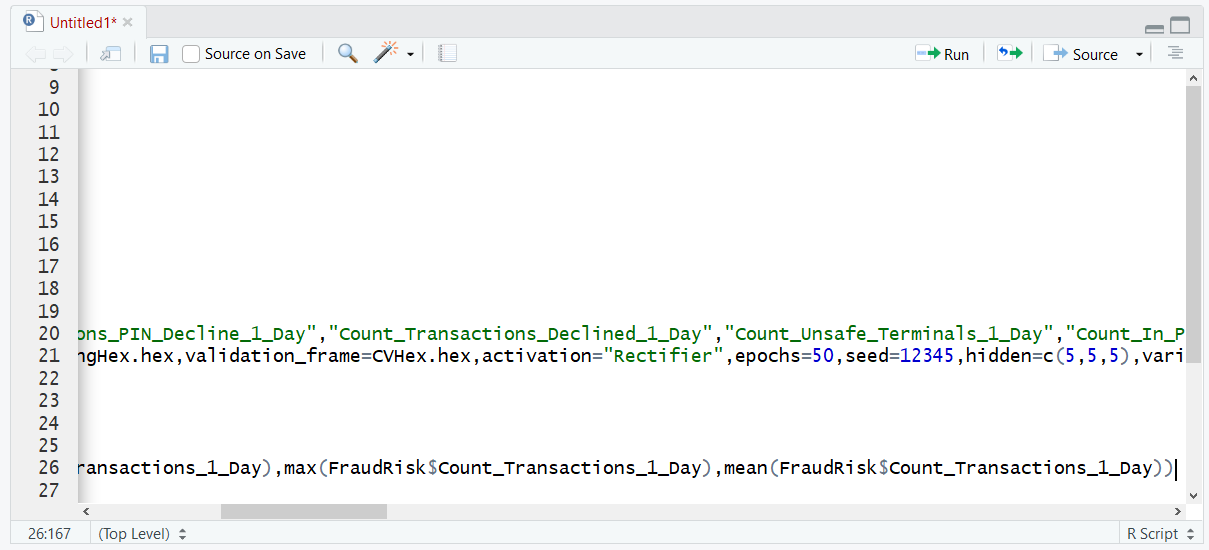

The dataframe needs to be as closely aligned to the real data as possible and as such the triangular distribution points are going to be taken from the training dataframe rather than created manually.  To create a vector for the first variable used in H2O model training use the following line of script:

Count_Transactions_1_Day <- rtriangle(100000,min(FraudRisk$Count_Transactions_1_Day),max(FraudRisk$Count_Transactions_1_Day),mean(FraudRisk$Count_Transactions_1_Day))

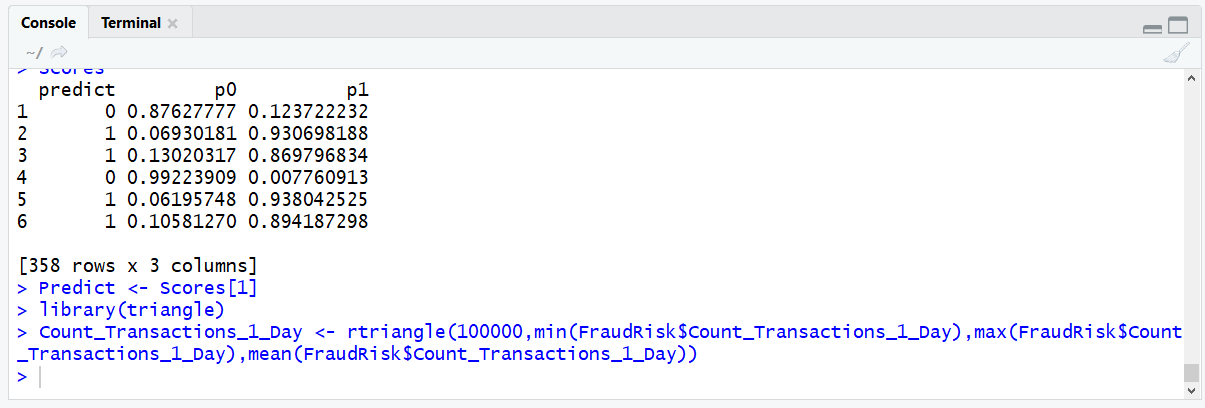

Run the line of script to console:


Validate the vector by inspecting it as a histogram:

hist(Count_Transactions_1_Day)

Run the line of script to console:


It can be seen that a triangular distribution has been created, slightly skewed to axis.  The task now remains to repeat this for each of the variables required of the H2O model.  The construct and principle for this procedure will be the same, for each variable:

Authenticated <- rtriangle(100000,min(FraudRisk$Authenticated),max(FraudRisk$Authenticated),mean(FraudRisk$Authenticated))
Count_Transactions_PIN_Decline_1_Day <- rtriangle(100000,min(FraudRisk$Count_Transactions_PIN_Decline_1_Day),max(FraudRisk$Count_Transactions_PIN_Decline_1_Day),mean(FraudRisk$Count_Transactions_PIN_Decline_1_Day))
Count_Transactions_Declined_1_Day <- rtriangle(100000,min(FraudRisk$Count_Transactions_Declined_1_Day),max(FraudRisk$Count_Transactions_Declined_1_Day),mean(FraudRisk$Count_Transactions_Declined_1_Day))
Count_Unsafe_Terminals_1_Day <- rtriangle(100000,min(FraudRisk$Count_Unsafe_Terminals_1_Day),max(FraudRisk$Count_Unsafe_Terminals_1_Day),mean(FraudRisk$Count_Unsafe_Terminals_1_Day))
Count_In_Person_1_Day <- rtriangle(100000,min(FraudRisk$Count_In_Person_1_Day),max(FraudRisk$Count_In_Person_1_Day),mean(FraudRisk$Count_In_Person_1_Day))
Count_Internet_1_Day <- rtriangle(100000,min(FraudRisk$Count_Internet_1_Day),max(FraudRisk$Count_Internet_1_Day),mean(FraudRisk$Count_Internet_1_Day))
ATM <- rtriangle(100000,min(FraudRisk$ATM),max(FraudRisk$ATM),mean(FraudRisk$ATM))
Count_ATM_1_Day <- rtriangle(100000,min(FraudRisk$Count_ATM_1_Day),max(FraudRisk$Count_ATM_1_Day),mean(FraudRisk$Count_ATM_1_Day))
Count_Over_30_SEK_1_Day <- rtriangle(100000,min(FraudRisk$Count_Over_30_SEK_1_Day),max(FraudRisk$Count_Over_30_SEK_1_Day),mean(FraudRisk$Count_Over_30_SEK_1_Day))
In_Person <- rtriangle(100000,min(FraudRisk$In_Person),max(FraudRisk$In_Person),mean(FraudRisk$In_Person))
Transaction_Amt <- rtriangle(100000,min(FraudRisk$Transaction_Amt),max(FraudRisk$Transaction_Amt),mean(FraudRisk$Transaction_Amt))
Sum_Transactions_1_Day <- rtriangle(100000,min(FraudRisk$Sum_Transactions_1_Day),max(FraudRisk$Sum_Transactions_1_Day),mean(FraudRisk$Sum_Transactions_1_Day))
Sum_ATM_Transactions_1_Day <- rtriangle(100000,min(FraudRisk$Sum_ATM_Transactions_1_Day),max(FraudRisk$Sum_ATM_Transactions_1_Day),mean(FraudRisk$Sum_ATM_Transactions_1_Day))
Foreign <- rtriangle(100000,min(FraudRisk$Foreign),max(FraudRisk$Foreign),mean(FraudRisk$Foreign))
Different_Country_Transactions_1_Week <- rtriangle(100000,min(FraudRisk$Different_Country_Transactions_1_Week),max(FraudRisk$Different_Country_Transactions_1_Week),mean(FraudRisk$Different_Country_Transactions_1_Week))
Different_Merchant_Types_1_Week <- rtriangle(100000,min(FraudRisk$Different_Merchant_Types_1_Week),max(FraudRisk$Different_Merchant_Types_1_Week),mean(FraudRisk$Different_Merchant_Types_1_Week))
Different_Decline_Reasons_1_Day <- rtriangle(100000,min(FraudRisk$Different_Decline_Reasons_1_Day),max(FraudRisk$Different_Decline_Reasons_1_Day),mean(FraudRisk$Different_Decline_Reasons_1_Day))
Different_Cities_1_Week <- rtriangle(100000,min(FraudRisk$Different_Cities_1_Week ),max(FraudRisk$Different_Cities_1_Week ),mean(FraudRisk$Different_Cities_1_Week ))
Count_Same_Merchant_Used_Before_1_Week <- rtriangle(100000,min(FraudRisk$Count_Same_Merchant_Used_Before_1_Week),max(FraudRisk$Count_Same_Merchant_Used_Before_1_Week),mean(FraudRisk$Count_Same_Merchant_Used_Before_1_Week))
Has_Been_Abroad <- rtriangle(100000,min(FraudRisk$Has_Been_Abroad),max(FraudRisk$Has_Been_Abroad),mean(FraudRisk$Has_Been_Abroad))
Cash_Transaction <- rtriangle(100000,min(FraudRisk$Cash_Transaction),max(FraudRisk$Cash_Transaction),mean(FraudRisk$Cash_Transaction))
High_Risk_Country <- rtriangle(100000,min(FraudRisk$High_Risk_Country),max(FraudRisk$High_Risk_Country),mean(FraudRisk$High_Risk_Country))

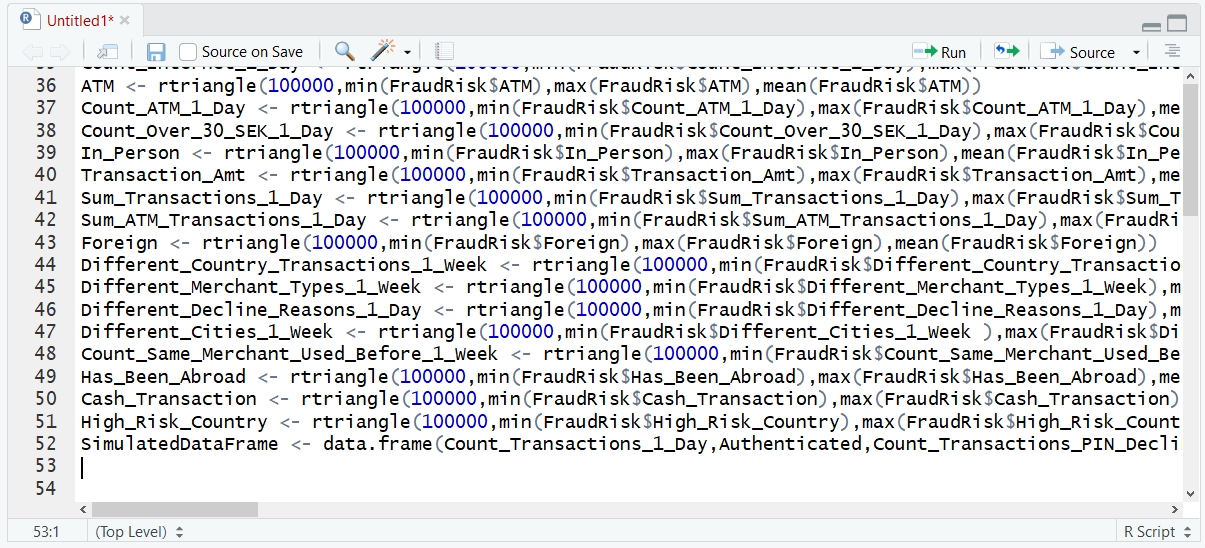

Run the block of script to console:


There now exists many randomly simulated vectors, created using a triangular distribution for each input variable for the H2O neural network model.  They now need to be brought together in a dataframe using the data.frame function:

SimulatedDataFrame <- data.frame(Count_Transactions_1_Day,Authenticated,Count_Transactions_PIN_Decline_1_Day,Count_Transactions_Declined_1_Day,Count_Unsafe_Terminals_1_Day,Count_In_Person_1_Day,Count_Internet_1_Day,ATM,Count_ATM_1_Day,Count_Over_30_SEK_1_Day,In_Person,Transaction_Amt,Sum_Transactions_1_Day,Sum_ATM_Transactions_1_Day,Foreign,Different_Country_Transactions_1_Week,Different_Merchant_Types_1_Week,Different_Decline_Reasons_1_Day,Different_Cities_1_Week,Count_Same_Merchant_Used_Before_1_Week,Has_Been_Abroad,Cash_Transaction,High_Risk_Country)

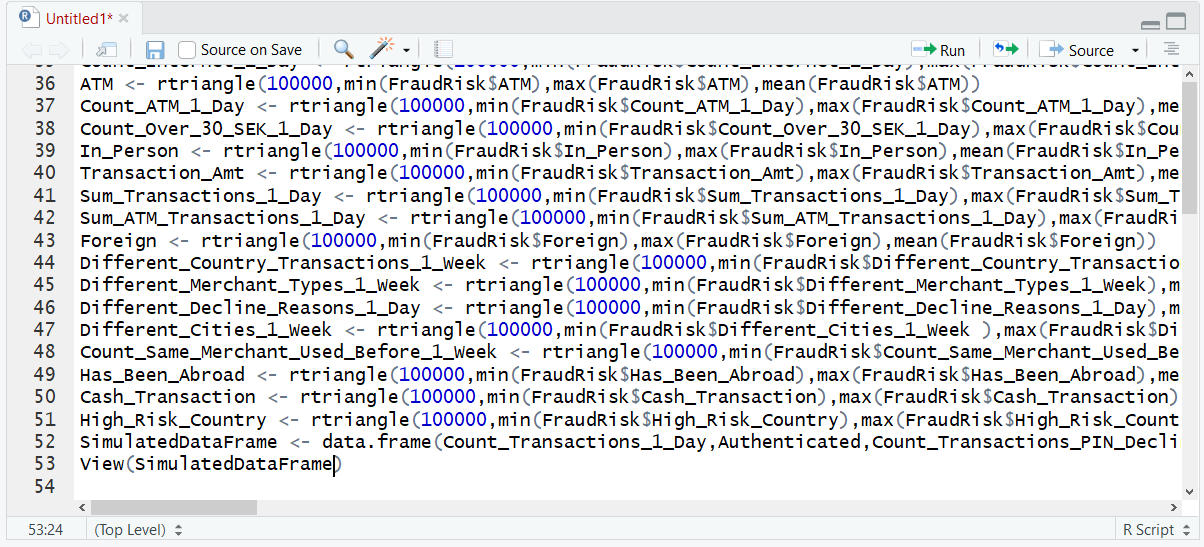

Run the line of script to console:


On viewing the SimuatedDataFrame, it can be seen that a new data frame has been created comprising random values.  This data frame can now be used in model recall in a variety of R models:

View(SimuatedDataFrame)

Run the line of script to console:
