3) Recalling a rpart() Decision Tree.

This Blog entry is from the Probability and Trees section in Learn R.

As with regression and most of the predictive analytics tools presented in this document, the predict() function can take the RegressionTree object in conjunction with a data frame,  then return the predictions.  To create predictions using the RegressionTree model and the FDX dataset:

RegressionTreePredictions <- predict(RegressionTree,FDX)

Run the line of script to console:

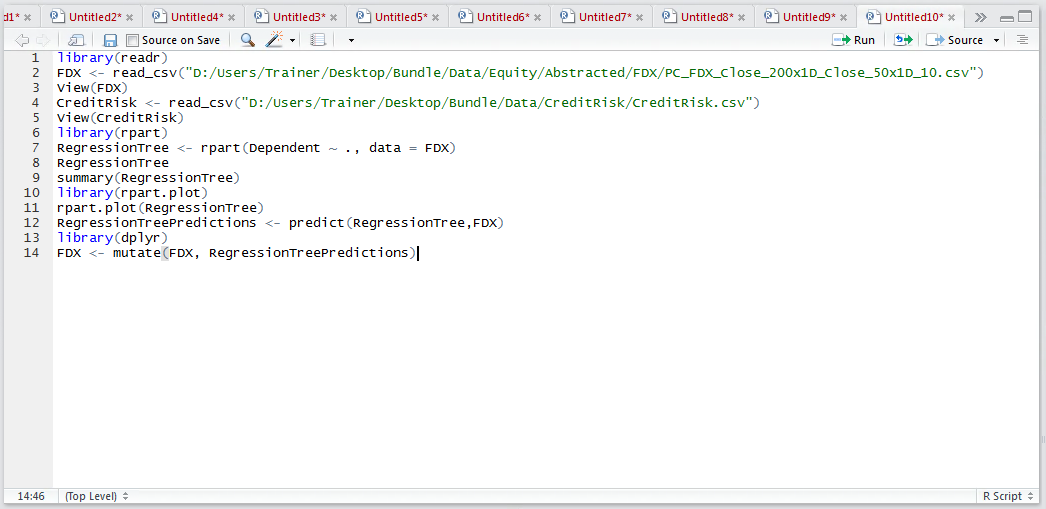

library(dplyr)
FDX <- mutate(FDX, RegressionTreePredictions)

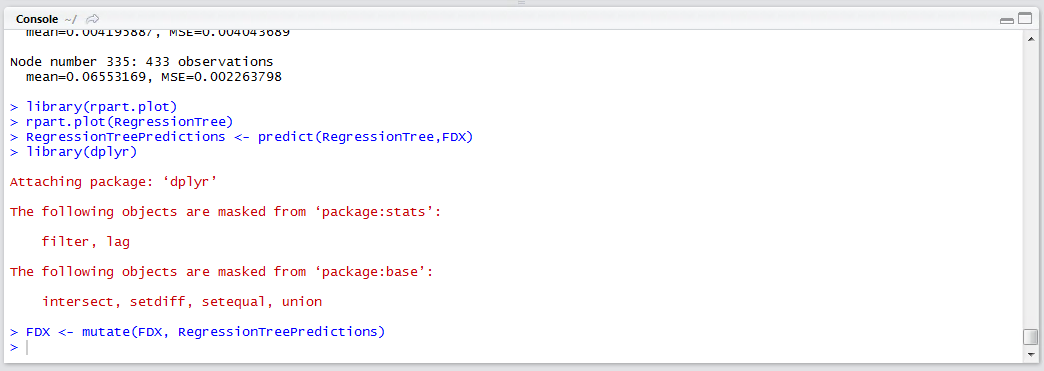

Run the block of script to console:


2) Visualise a rpart Decision Tree

This Blog entry is from the Probability and Trees section in Learn R.

Once familiar with the output of a regression tree, it becomes an informative means to create business rules. Quite often however, for the purposes of communication, it is more satisfying to create a visualisation.  A package called rpart.plot is available for the purposes of translating regression trees to a visualisation.  Start by installing the rpart.plot package:


Click install to download and install the package:


Reference the library:

library(rpart.plot)

Run the line of script to console:


To transpose the Regression Tree to a plot, simply pass it as an argument to the rpart.plot() function:

rpart.plot(RegressionTree)

Run the line of script to console:


It can be seen that a complex visualisation has been created in the plots window of R Studio:


The visualisation is exceptionally hard to interpret for a large regression tree; hence it will likely need to be exported to a PDF or Image file to use a zoom function:
